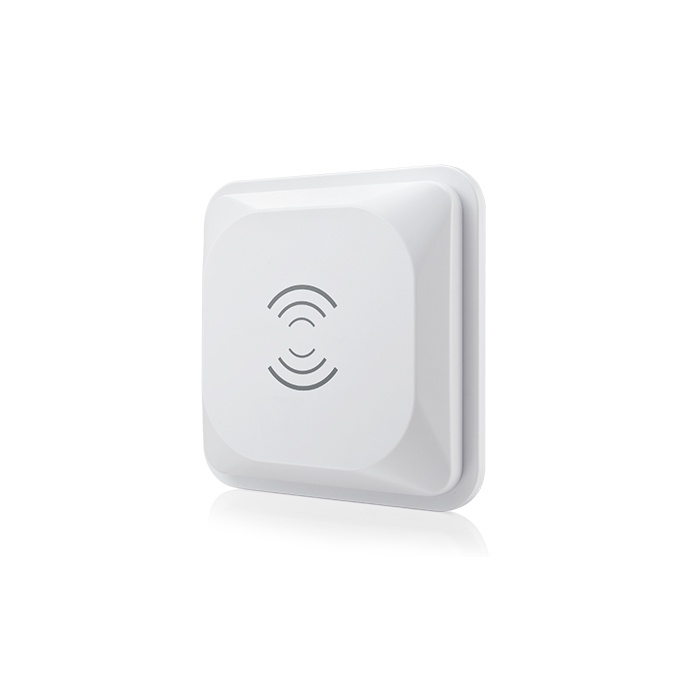

UHF RFID 9dBi Linear Antenna

high-performance linearly polarized RFID antenna
that can be easily applied to various indoor and outdoor
applications in the UHF frequency band
  • 9dbi UHF RFID Linear Antenna
  • 9dbi UHF RFID Linear Antenna
9dbi UHF RFID Linear Antenna
  • Polarization: Linear Polarization
  • Gain: 9dbi
  • Protection rate: IP65
  • Wide frequency range: 860-960 Mhz
Get Quote
High gain, low standing wave and linear polarization, good applicability and easy installation.
  • Physical specification
    Weight 0.6kg
    Dimensions 290mm×290mm×55mm
    Housing Material Aluminum +ABS
    Connector type / position: TNC female on the back
    Operating Temp. -20 - +70°C
    Storage Temp. -40 - +80°C
  • Electrical Specifications
    Frequency Range 865MHz~928MHz
    Typical VSWR <1.5:1
    Gain 9dbi
    Beamwidth 60°x 65°
    Polarization Linear
    Nominal Impedance 50 (Ω)
    Maximum Input Power 10W
Intelligent Transportation
Highway RFID Tolling
With the in-depth development of the world economy, the transportation infrastructure has been greatly improved. However, the traffic capacity of the road network is increasingly unable to meet the needs of traffic growth, and traffic congestion is becoming more and more serious, especially at high-speed toll stations. How to realize the effective command, coordinated control and management of various vehicles has become an important issue for traffic safety management department in different countries and regions.
RFID technology (radio frequency identification technology), as a revolutionary solution to security and management, can effectively solve the traffic issues. Hopeland provides a variety of RFID products, including UHF RFID readers, RFID Antennas, RFID vehicle tags, to promote the management of highway toll collections.
View Details
Intelligent Transportation
RFID Parking Access
Currently the vehicle management of parking yard mainly depends on manual recording, through manual transcribing the identification number at the front of the vehicle sequence number (the car in front of the bar code) registration identification.

Registered vehicles cannot be ensured in the field, although for different zoning, established the identity of cardboard. When we want to find out a specific vehicle, the process will be much time-consuming and cumbersome. Sometimes, some cars are not observed, the presence of area stopped for a long time and has not been sold. The stock situation cannot be timely to be controlled. For this situation, we need to implement automatic vehicle access registration, to achieve partition statistics, sales statistics, long stay and early-warning capabilities, making it imperative. Therefore, we need a new system to replace the existing system, which using more scientific and reasonable methods to reach vehicle monitoring.
View Details
Warehousing & Logistics

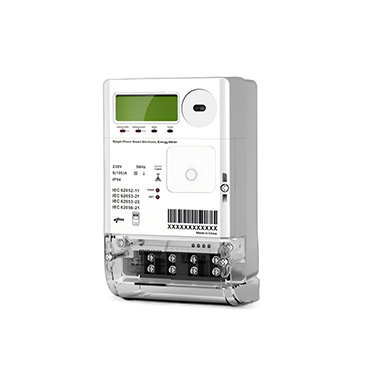

Smart Meter Warehousing
Electric energy meters are not only power operation equipment, but also a key device for trade settlement and business assessment of power products. Establishing a complete, refined and correct probability asset management is not only an important basis for the improvement of marketing technology equipment, but also an important part of the construction of power grids and ERP systems. , put forward an urgent need for the refined management of electric energy meters;

Using barcode technology for data acquisition requires reading every electric energy meter, the work efficiency is very low, and it takes more time to enter and leave the warehouse. At the same time, manual operation may damage the electric energy meter and increase the cost of warehouse management.
View Details
