HL9100

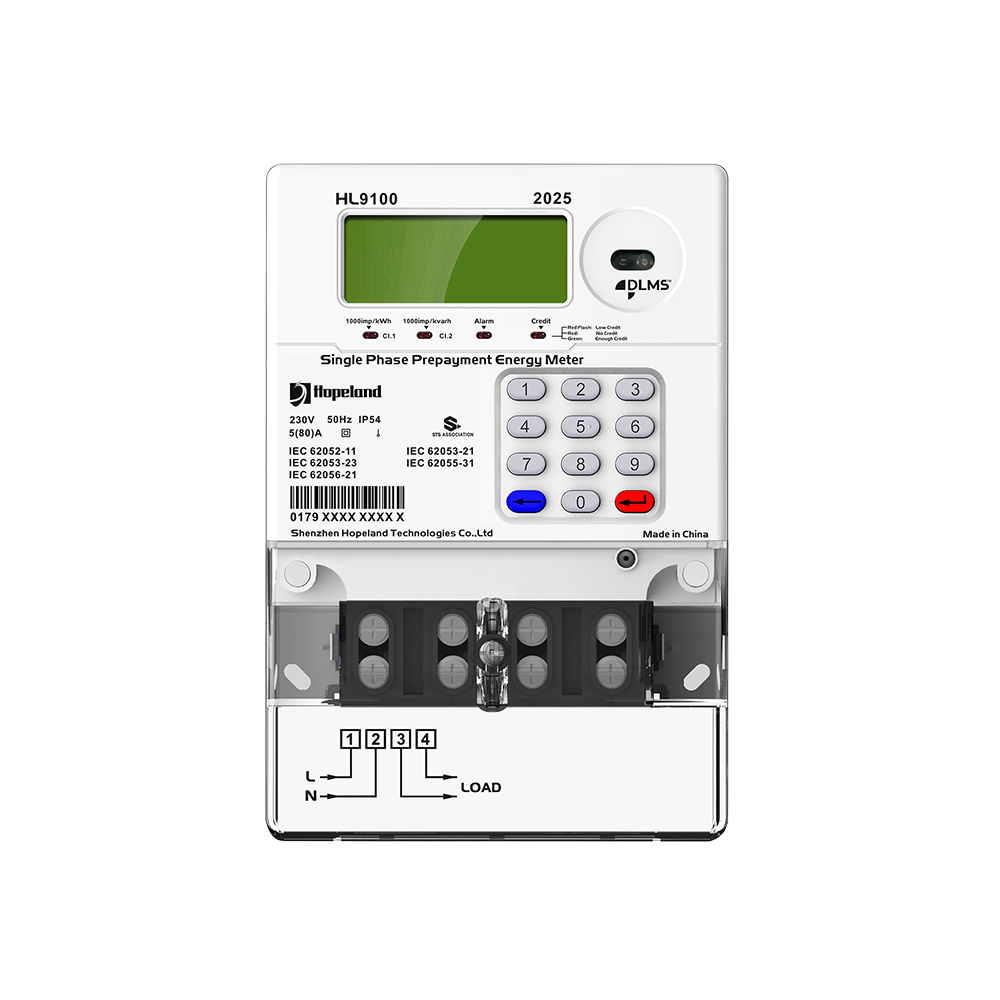

Single-phase Prepaid Energy Meter HL9100
HL9100 Single phase prepayment energy meter Energy Metering, Load Curve Recording, Event Recording with Anti-tampering function. It complies with STS, DLMS/COSEM, IEC62056-21 and other protocol standard, and the local communication uses RS485, infrared, RJ45, USB, etc.
/
Single-phase Prepayment Energy Meter HL9100
Features
-
Energy Metering -
Event Recording -
Precise Measurement -
Anti-tampering Function
Highlights

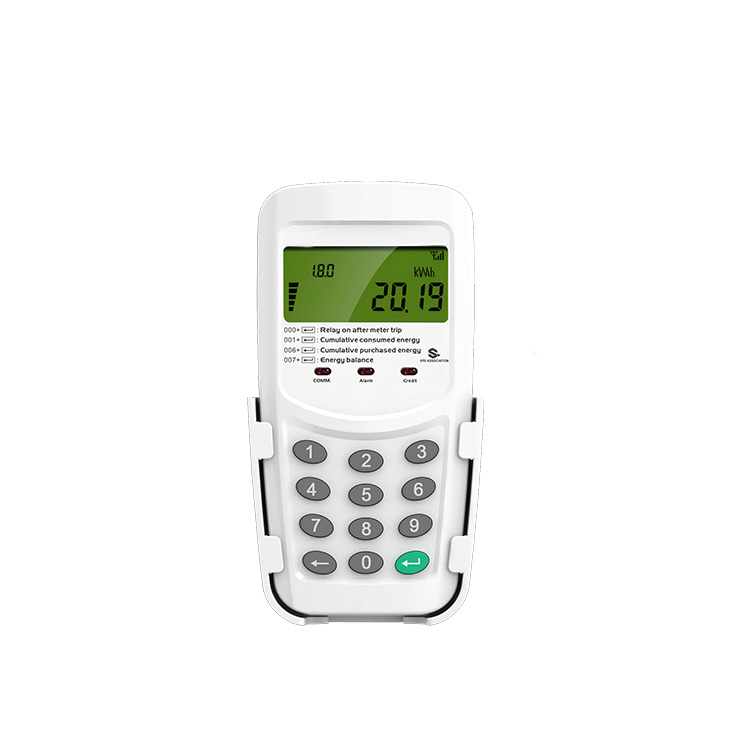

HL9100 Single-phase prepayment energy meter supports pre-purchased electricity for billing. It features a digital keypad interface and infrared and cable communication functions, and includes a metering unit, real-time clock unit, load switch, etc. It uses the STS algorithm, has a high security level, and is compatible with systems that meet the STS standard.
HL9100 Single-phase prepayment energy meter supports pre-purchased electricity for billing. It features a digital keypad interface and infrared and cable communication functions, and includes a metering unit, real-time clock unit, load switch, etc. It uses the STS algorithm, has a high security level, and is compatible with systems that meet the STS standard.
Specifications
-
Technical Parameters
Normanative Standard IEC 62052-11
IEC 62053-21
IEC 62055-31
IEC 62056-21Accuracy Class kWh: Class 1.0
Protocol Standard DLMS/COSEM
Rated Voltage 230V
Maximum Current 60A/80A/100A Frequency Range 50/60Hz±5%
Starting Current 0.4% Ib
-
Other Parameters
Dimension 122*178*56.5mm Temperature Operation: -25° C ~ + 75°C
Storage: -40° C ~ + 85°C
IP Level ≥IP54
