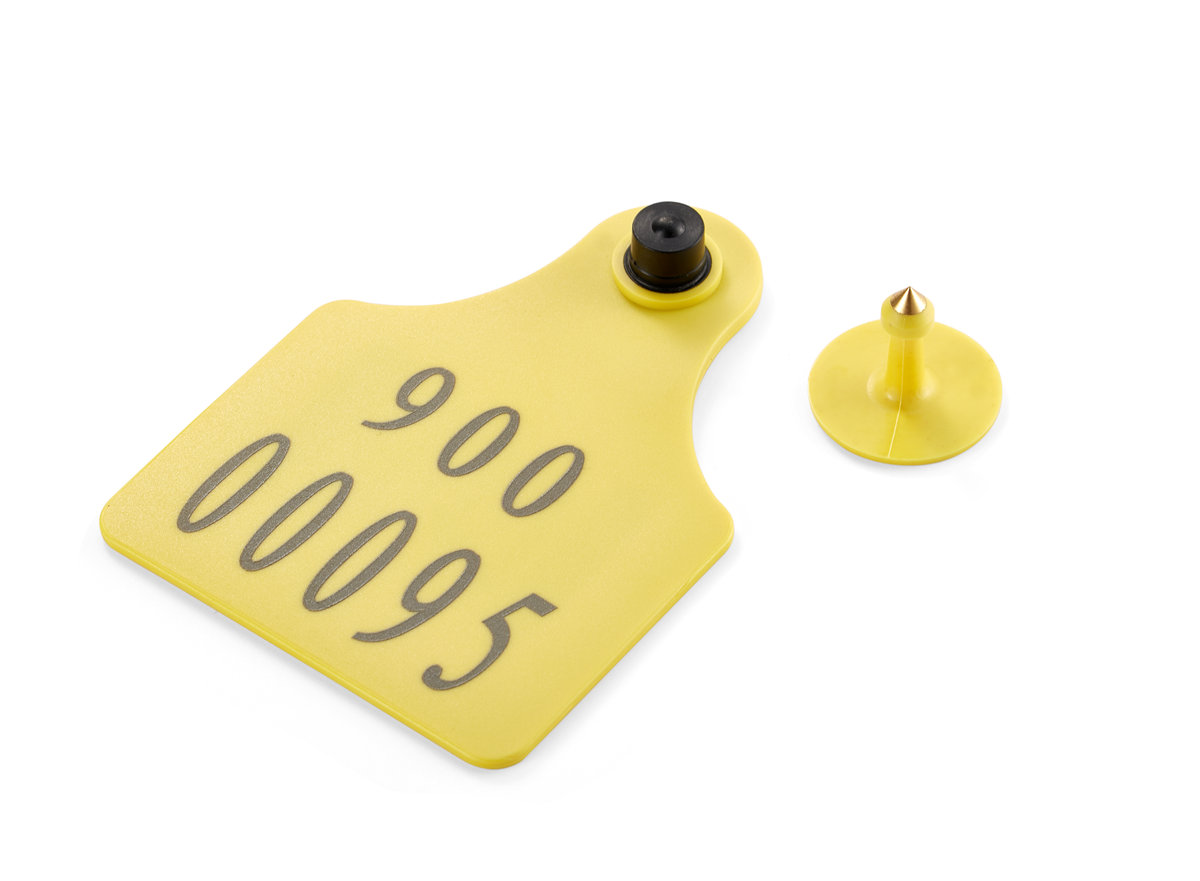

Animal Ear RFID Tag
Animal tracking RFID Tag
RFID UHF Animal Tag
/
UHF RFID Animal Ear Tag
Features
-
Frequency: 865-868Mhz or 902-928 Mhz (Optional) -
Good performance: reading distance up to 8m. -
Application: animal management
Highlights
Animal ear tag for cow, sheep, pig. with impinj R6 chipset, TPU material. Read range 4-8 meters.
Animal ear tag for cow, sheep, pig. with impinj R6 chipset, TPU material. Read range 4-8 meters.
Specifications
-
Electrical parameters
Protocol EPC CLASS1 GEN2, ISO 18000-6C Frequency 902MHz-928MHz; 865-868MHz Chip R6 or U8 Memory EPC: 96 bits
User memory: 96 bits or 512 bitsData retention >10 years Write cycles >100000times Read Range 4-8m(depend on the work environment and reader) -
Physical Parameters
Size 100mm x 74mm Substrate material TPU (Polyurethane) Working temperature -30℃~+65℃ Storage temperature -45℃~+85℃ Application field Animal ear tag ( pigs, cattle, sheep and etc.)
Applications
