HL6200-48
Off-grid Hybrid Inverter
A compact and reliable power solution integrating inverter, solar charger, and battery management in one unit. It supports solar, battery, and generator/grid input, ensuring stable power supply even during outages. Designed for easy installation and strong performance in weak grid environments, it is ideal for homes and small businesses.
/

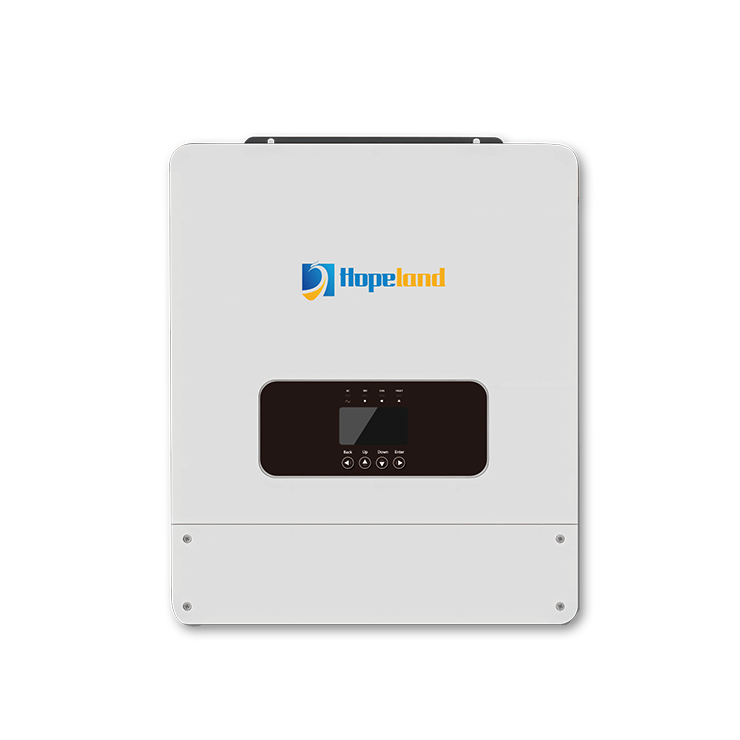

Smart Off-grid Hybrid Inverter HL6200-48
Features
-
LCD display, IP54 Protection -
Advanced lightning protection -
Smart gapless supple from pv, grid and battery -
Smart gapless supple from pv, grid and battery -
Up to 12 units parallel for on-grid & off-grid connection
Highlights
Hopeland Smart Off-grid Hybrid Inverter HL6200-48 is a compact and reliable power solution integrating inverter, solar charger, and battery management in one unit. It supports solar, battery, and generator/grid input, ensuring stable power supply even during outages. Designed for easy installation and strong performance in weak grid environments, it is ideal for homes and small businesses.
Hopeland Smart Off-grid Hybrid Inverter HL6200-48 is a compact and reliable power solution integrating inverter, solar charger, and battery management in one unit. It supports solar, battery, and generator/grid input, ensuring stable power supply even during outages. Designed for easy installation and strong performance in weak grid environments, it is ideal for homes and small businesses.
Specifications
-
AC Input(on grid)
Max. AC Input Power (W) 11500 Max. AC InputCurrent (A) 50 Rated Grid Voltage 220/230/240 Rated grid frequency(Hz) 50/60 Acceptable range 170-280Vac(UPS mode) 90-280Vac(for loads) Power Factor Adjustment Range 0.8 leading to 0.8 lagging -
AC Output Data (off grid)
Peak Power (off-grid)(W) 2 times of rated power, 10s Rated Output output power(W) 6200 Rated Output Current(A) 28.2 Rated Outpout voltage 220/230/240 Total Current Harmonic Distortion THDi <3% (at nominal load) Transfer Time 10ms(UPS),20ms(loads) -
Battery Input Data
Battery Type Lead-acid or Lithium-ion Battery Voltage Range (V) 40-60 Max. Charging Current (A) 120 Max. Discharging Current (A) 130 Rated Battery Voltage(Vdc) 48 -
General Data
Operating Temperature ange (℃) -40 to +60℃, >45℃ Derating Permissible Ambient Humidity 0-100% Permissible Altitude 2000m Noise (dB) <30 Ingress Protection(IP) Rating IP54 Cabinet Size (WxHxD mm) 358*420×123 Weight (kg) 13
