Vehicle Light
RFID Tag Sticker

Anti-transfer and tamper-proof (such as heating transfer, chemical
transfer, blade transfer, etc.),anti-UV ultraviolet design, widely used
in vehicle tracking project.
  • CL7203L8L
  • RFID Tag Sticker for Vehicle Light CL7203L8L
RFID Tag Sticker for Vehicle Light CL7203L8L
  • Reliable: Alien A3/ Impinj M4 chip
  • High performance: reading distance up to 10m.
  • Flexible application: ITS, ETC, vehicle management, parking management
Get Quote
  • Performance parameter
    Frequency 860-960MHz (CN, ETSI, FCC standard customized)
    ISO 18000-6C GEN2 Class 1
    Chip Impinj M4QT
    Modulation Mode FHSS
    User Memory TID:96bit EPC:96bit User:512bit
    Data Rate Forward: 40-160kbits/s, reverse:40-640kbits/s
    Data Protection
    Password modify, lock, kill
    Data-hold >10 years, Wipe more than 100000 times
  • Physical parameter
    Size 110mm X 40mm 0.32mm
    Weight 1.5g
    Material Waterproof PET
    Working temperature -25℃~75℃
    Storage temperature 0℃~25℃
    Relative humidity: 5%~95% RH non-condensing
Intelligent Transportation

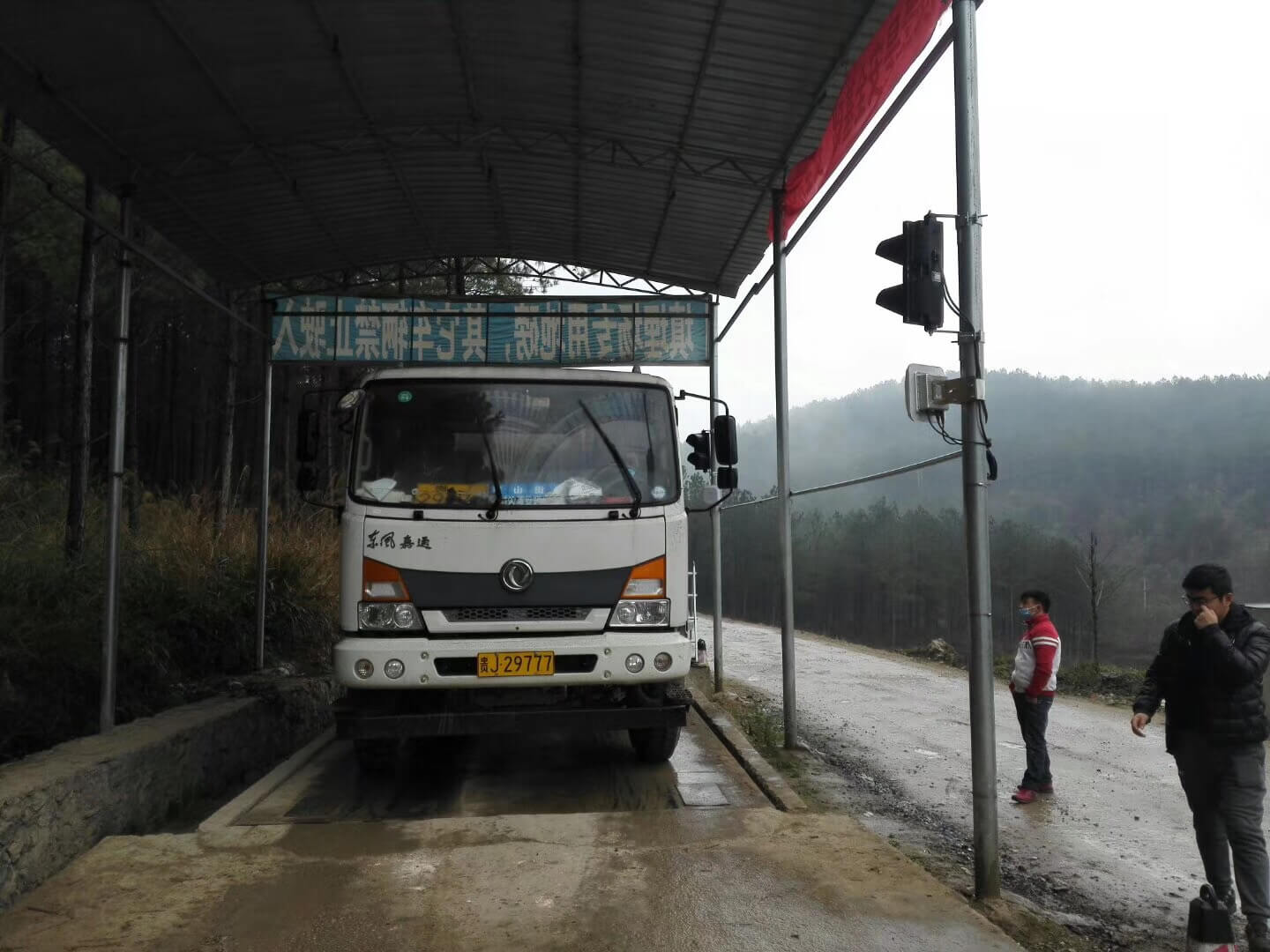

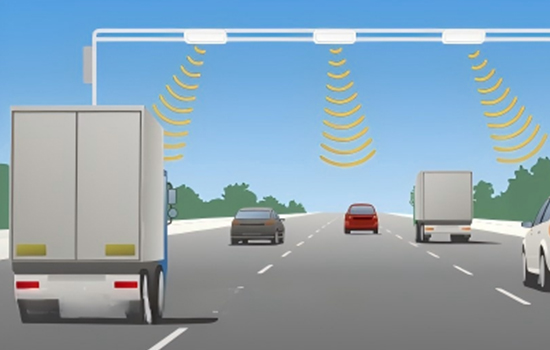

Highway RFID Tolling
With the in-depth development of the world economy, the transportation infrastructure has been greatly improved. However, the traffic capacity of the road network is increasingly unable to meet the needs of traffic growth, and traffic congestion is becoming more and more serious, especially at high-speed toll stations. How to realize the effective command, coordinated control and management of various vehicles has become an important issue for traffic safety management department in different countries and regions.

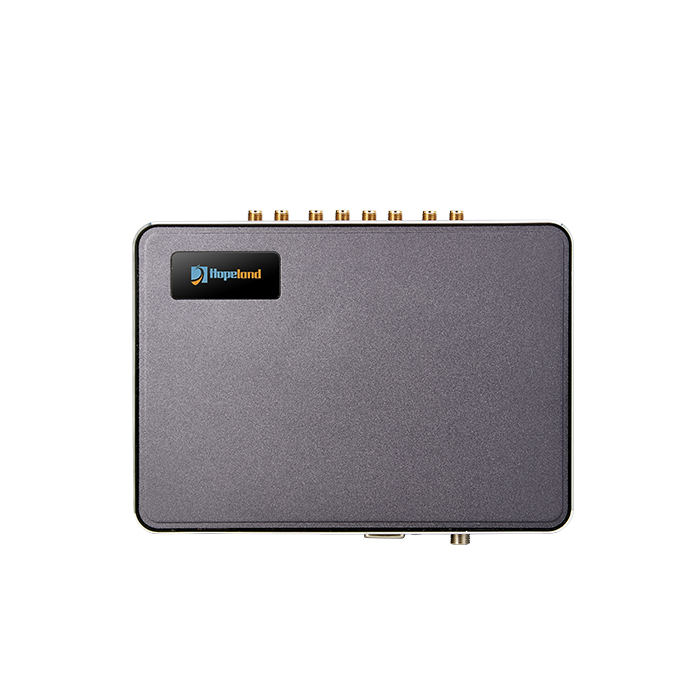

RFID technology (radio frequency identification technology), as a revolutionary solution to security and management, can effectively solve the traffic issues. Hopeland provides a variety of RFID products, including UHF RFID readers, RFID Antennas, RFID vehicle tags, to promote the management of highway toll collections.
View Details
Intelligent Transportation

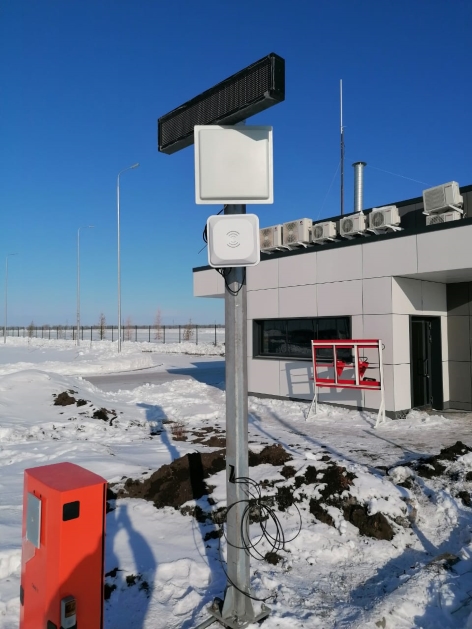

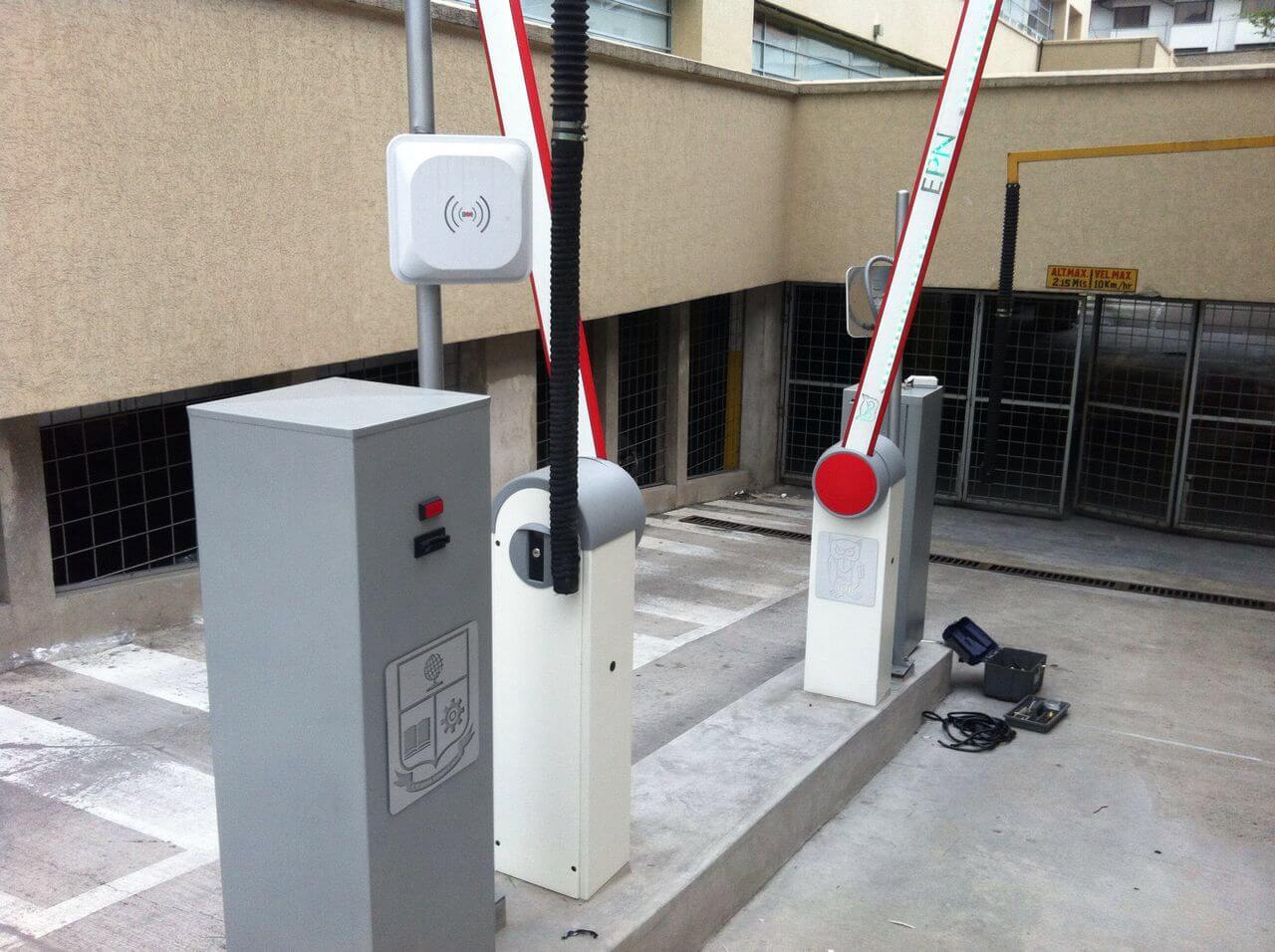

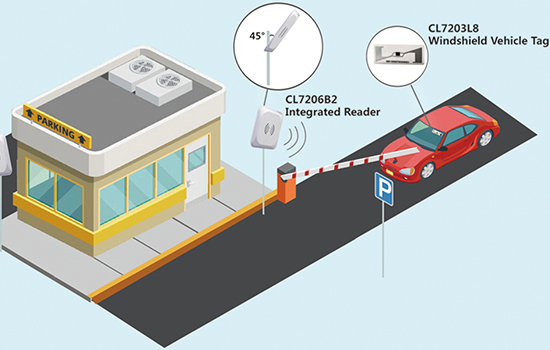

RFID Parking Access
Currently the vehicle management of parking yard mainly depends on manual recording, through manual transcribing the identification number at the front of the vehicle sequence number (the car in front of the bar code) registration identification.

Registered vehicles cannot be ensured in the field, although for different zoning, established the identity of cardboard. When we want to find out a specific vehicle, the process will be much time-consuming and cumbersome. Sometimes, some cars are not observed, the presence of area stopped for a long time and has not been sold. The stock situation cannot be timely to be controlled. For this situation, we need to implement automatic vehicle access registration, to achieve partition statistics, sales statistics, long stay and early-warning capabilities, making it imperative. Therefore, we need a new system to replace the existing system, which using more scientific and reasonable methods to reach vehicle monitoring.
View Details
Warehousing & Logistics

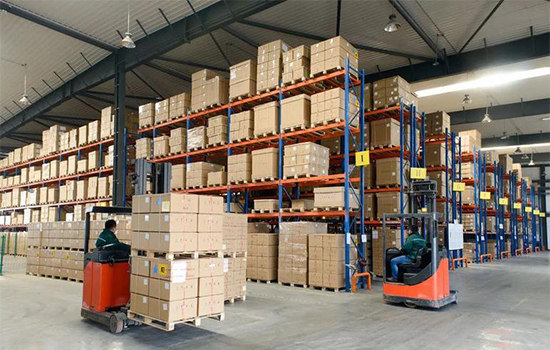

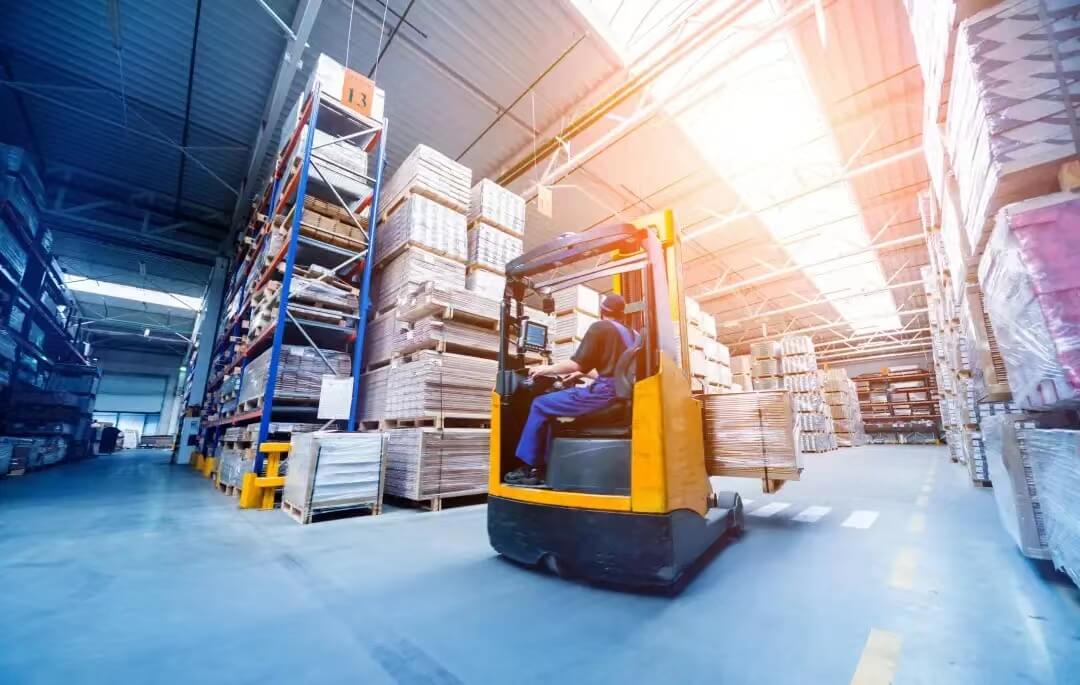

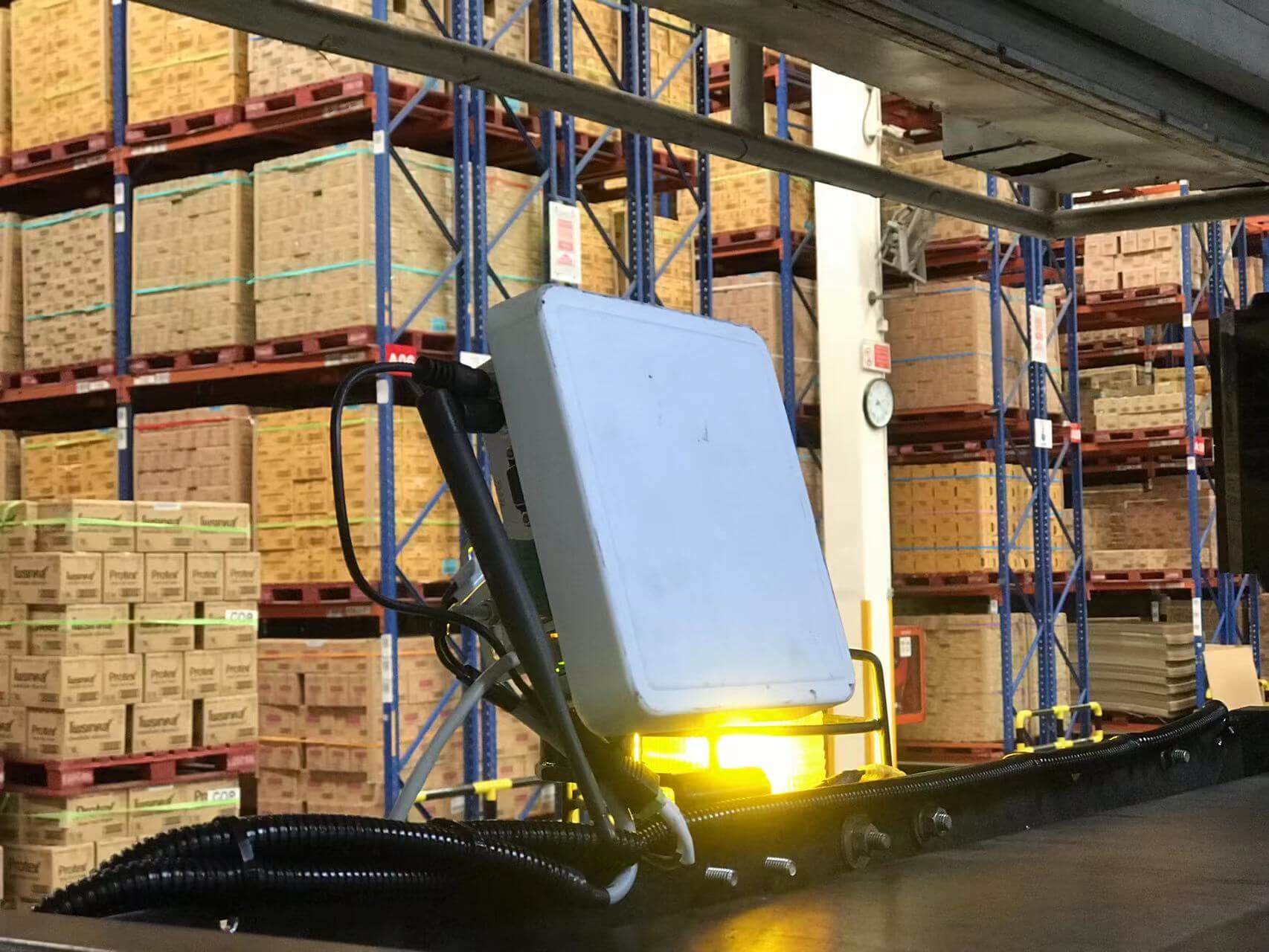

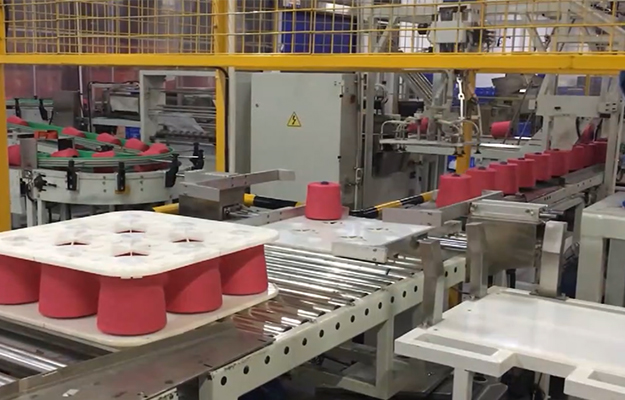

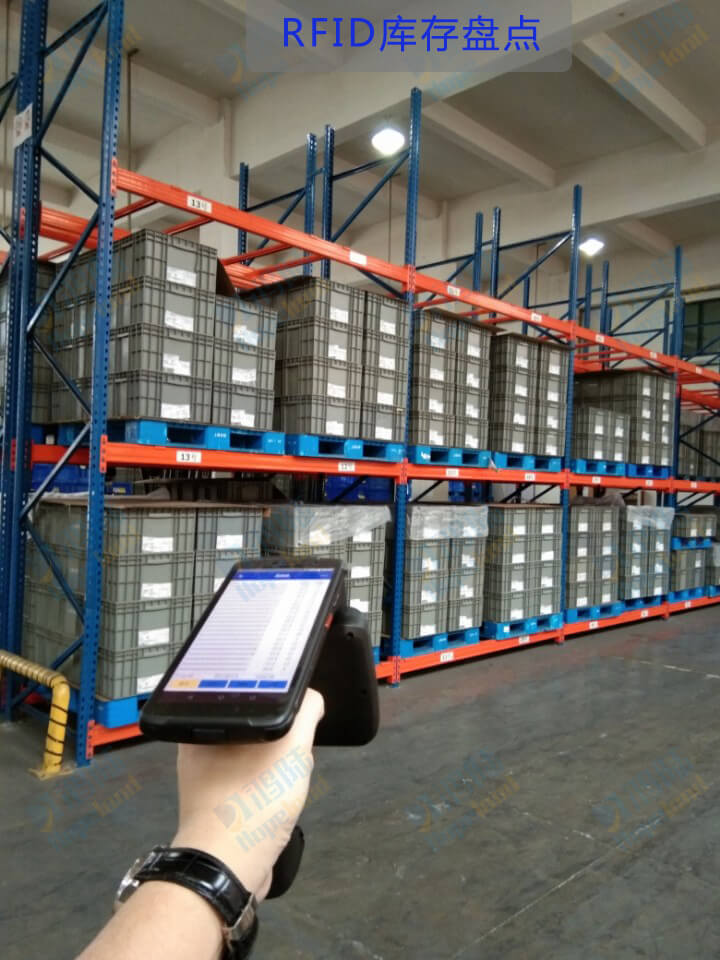

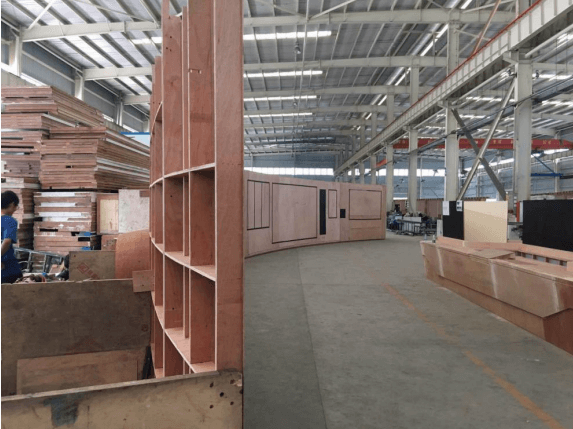

Smart Warehousing
Modern warehouse storage is not only to complete the simple batch processing of goods in and out, but also to make clear database records of the types, quantities, production attributes, stacking positions and other information of goods in the warehouse. In order to obtain accurate product data and supply chain information at all stages of the logistics chain.

At present, the one-dimensional barcode/two-dimensional barcode identification technology has been widely used in the management of item classification and labeling. However, its barcode technology relies on visible light scanning reflection, has low recognition rate, is easy to break, contaminates, is sensitive to media such as water and oil, and stores a limited amount of information, which affects its application in large-scale logistics management.

RFID radio frequency identification technology is a typical representative of automatic identification technology. It has high recognition accuracy, reliable performance, large amount of stored information, resistance to oil and sewage washing, etc. It is especially suitable for automatic identification requirements in industrial environments. The use of RFID tags to replace barcodes and other identification products can effectively complete the automatic management of warehousing and realize automatic collection, automatic processing and information reporting of product information.
View Details
