S100

Super Cost-efficient 10m Integrated Reader

Classic UHF RFID Reader based on Chinese QM100 chip, supporting ISO18000-6C protocol, middle rang RFID reading, fast identification. Widely used for vehicle management, production automation, parking system and so on.
  • Cost-efficient 10m Integrated Reader S100
  • Cost-efficient 10m Integrated Reader S100
  • Cost-efficient 10m Integrated Reader S100

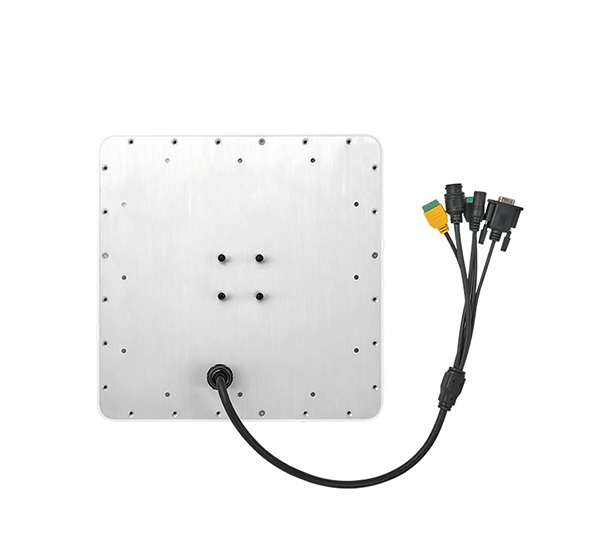

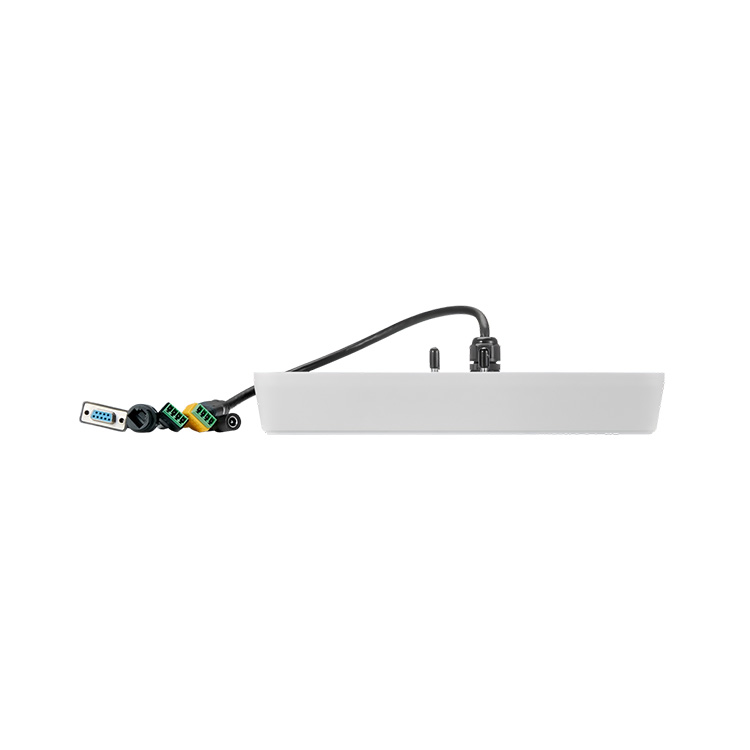

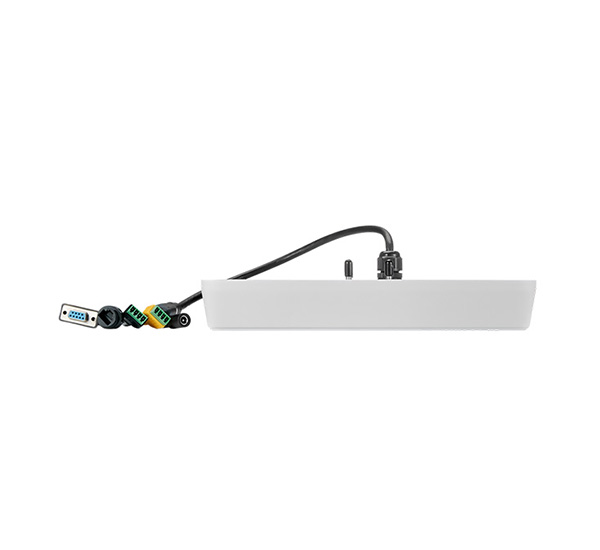

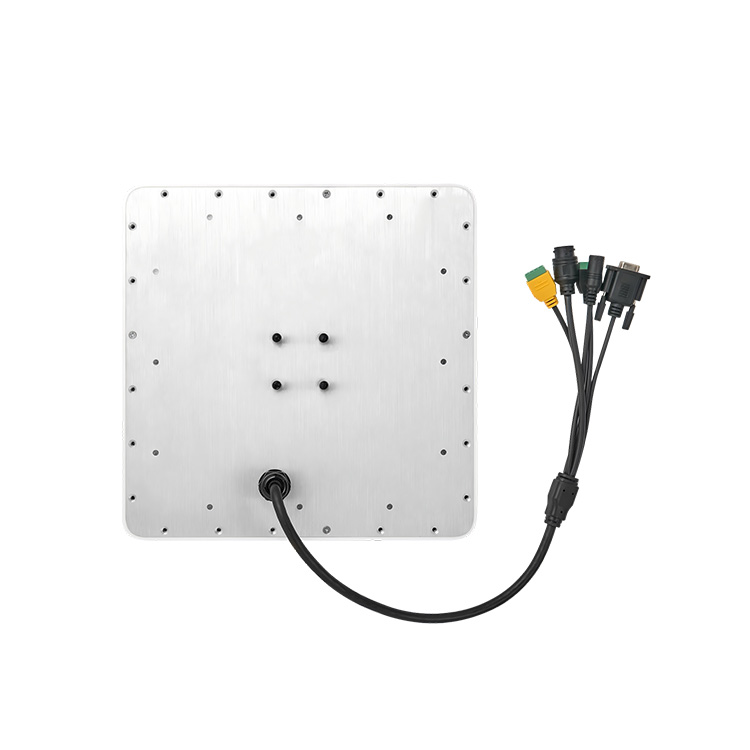

Cost-efficient 10m Integrated Reader S100
Features
  • HousingMaterial: Aluminum plate, ABS cover
  • Read Range: 6-12m
  • RS-232, RS-485, Wiegand, RJ45 optional
  • IP65 Rugged
Get Quote
Highlights

S100 Cost-efficient Integrated Reader

*Cost-efficient integrated reader achieves beyond-expected tag reading performance to meet various application scenarios

*Rich communication interfaces (Ethernet, RS232, RS485, etc.)

*The built-in buzzer can be set as the tag reading prompt sound

*Support online upgrade

*Support RSSI and tag data filtering

*Support custom data output format



*Communications with 2 different versions:

*TCP/IP Version: RJ45, RS232, RS485, Wiegand26/ 34/ 66

*Serial Version:RS232, RS485, Wiegand26/ 34/ 66



S100 Cost-efficient Integrated Reader

*Cost-efficient integrated reader achieves beyond-expected tag reading performance to meet various application scenarios

*Rich communication interfaces (Ethernet, RS232, RS485, etc.)

*The built-in buzzer can be set as the tag reading prompt sound

*Support online upgrade

*Support RSSI and tag data filtering

*Support custom data output format

*Communications with 2 different versions:

*TCP/IP Version: RJ45, RS232, RS485, Wiegand26/ 34/ 66

*Serial Version:RS232, RS485, Wiegand26/ 34/ 66


Specifications
  • Physical
    Dimensions 276mm×276mm×41mm
    Weight 1.6kg
    HousingMaterial Aluminum plate, ABS cover
    Visual Status Indicator Power/Status
  • SDK and Firmware Management
    Firmware Upgrade Demo software
    API Support Windows – .NET, C++ and Java SDK
    Android - Java
    Linux platform – C and Java SDK
  • RFID
    Chipset QM100
    Air Protocols ISO/IEC18000-6C / EPC C1Gen2
    Frequency 902-928MHz , 865-868MHz,
    920-925MHz
    Output Power 7dBm-30dBm (±1dBm) adjustable
  • Environment
    Operating Temperature -20 - +70°C
    Storage Temperature -40℃ ~ +85°C
    Operating Humidity 5-90% non-condensing (+25℃)
Applications
Warehousing & Logistics
Smart Warehousing
Modern warehouse storage is not only to complete the simple batch processing of goods in and out, but also to make clear database records of the types, quantities, production attributes, stacking positions and other information of goods in the warehouse. In order to obtain accurate product data and supply chain information at all stages of the logistics chain.

At present, the one-dimensional barcode/two-dimensional barcode identification technology has been widely used in the management of item classification and labeling. However, its barcode technology relies on visible light scanning reflection, has low recognition rate, is easy to break, contaminates, is sensitive to media such as water and oil, and stores a limited amount of information, which affects its application in large-scale logistics management.

RFID radio frequency identification technology is a typical representative of automatic identification technology. It has high recognition accuracy, reliable performance, large amount of stored information, resistance to oil and sewage washing, etc. It is especially suitable for automatic identification requirements in industrial environments. The use of RFID tags to replace barcodes and other identification products can effectively complete the automatic management of warehousing and realize automatic collection, automatic processing and information reporting of product information.
View Details
Smart Retail
Smart Retail Store
Pain points in traditional retail stores
Operating aspects:
The operating costs of common convenience stores continue to rise
The cost of rent
convenience stores and merchants are more and more concerned with the capital. But the store resources are relatively scarce, and the pressure on the rising cost of rent will continue to exist in the future.
Labor costs
The decline of the working age workforce increases the labor cost. The increase of convenience store staff mobility and the increase of personnel costs and management costs.
The cost of water and electricity
The relative area is larger and the water power consumption is more.
Consumer aspects:
Purchasing daily necessities is inconvenient and far away.
There is no 24-hour store in the evening, and difficult to meet any emergency.
View Details
